CEILING SPEAKERS
IC-660-1MI & IC-870-1MI
IC-660-1MI & IC-870-1MI
6.5" & 8" 2-WAY CEILING SPEAKER
DETAIL

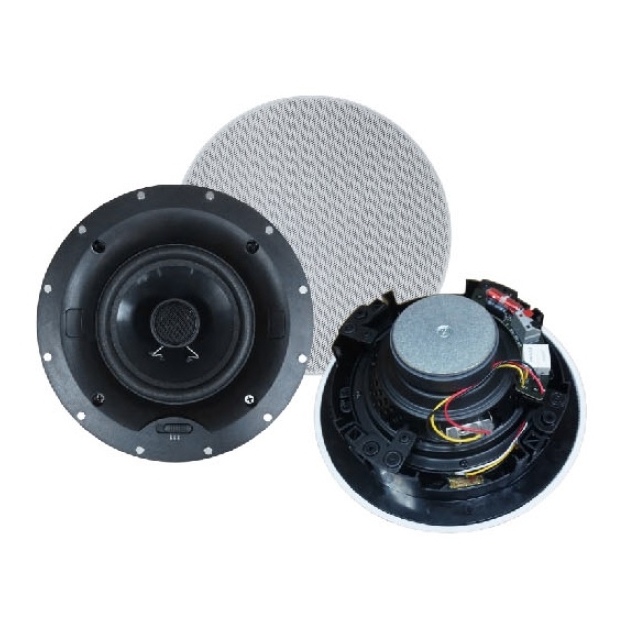

6.5" 2-WAY CEILING SPEAKER
MAGNETIC GRILLE DESIGN
WOOFER MAGNET: 10 OZ
P.P. INJECTION CONE WOOFER
13MM SWIVEL DOME TWEETER
SWITCH of 0. -3,-6dB
BUILT-IN 6dB CROSSOVER
MAXIMUM AMPLIFIER POWER: 80W
IMPEDANCE: 8 OHMS
DIMENSION: Φ248mmX91mm
CUT-OUT DIMENSION: Φ200.5mmX86mm
IC-870-1MI
8" 2-WAY CEILING SPEAKER
MAGNETIC GRILLE DESIGN
WOOFER MAGNET: 20 OZ
P.P. INJECTION CONE WOOFER
13MM SWIVEL DOME TWEETER
SWITCH of 0. -3,-6dB
BUILT-IN 6dB CROSSOVER
MAXIMUM AMPLIFIER POWER: 100W
IMPEDANCE: 8 OHMS
DIMENSION: Φ282mmX108.5mm
CUT-OUT DIMENSION: Φ242.5mmX104mm
